CYD ESPHome Homeassistant Timer module & Pinpad
Code and stuffs to create a homeassistant timer for the widely available Cheap Yellow Display (CYD) board.

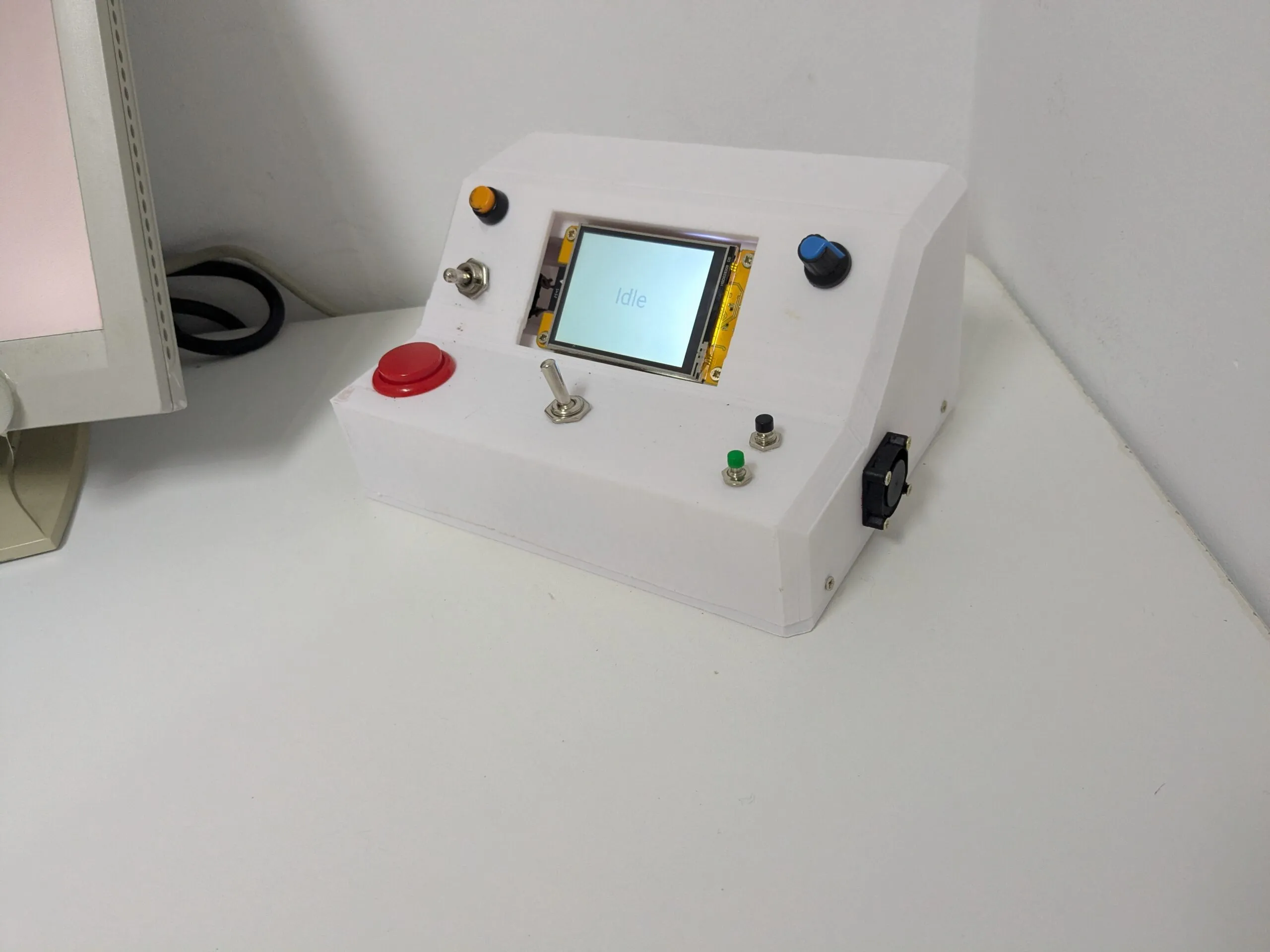

When a timers starts in homeassistant the same timer is displayed on the screen with a timer bar at the bottom. It displays only minutes and seconds as this is used for a 60 minutes timer.
When a screen is touched, the pinpad activates and waits for input. If no input is given it changes back to the timer.
esphome:
name: pinpadwithtimer
friendly_name: PinPadWithTimer
esp32:
board: esp32dev
framework:
type: arduino
logger:
api:
encryption:
key: super_secret_api_key
ota:
- platform: esphome
password: !secret pinpadwithtimer__ota_password
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: !secret pinpadwithtimer__ap_ssid
password: !secret pinpadwithtimer__ap_password
captive_portal:Paste after captive_portal:
# ================= BUS CONFIGURATION =================
# Split the same physical pins into two distinct SPI IDs to stop mipi_spi bus locks
spi:
# Main Display Hardware SPI Bus
- id: tft_spi
clk_pin: GPIO14
mosi_pin: GPIO13
miso_pin: GPIO12
# Separated Touchscreen Hardware SPI Bus
- id: touch_spi
clk_pin: GPIO25
mosi_pin: GPIO32
miso_pin: GPIO39
globals:
- id: target_timestamp
type: double
initial_value: '0.0'
- id: current_page
type: std::string
initial_value: '"TIMER"'
- id: entered_code
type: std::string
initial_value: '""'
- id: pad_status
type: std::string
initial_value: '"Enter PIN"'
- id: active_pressed_btn
type: int
initial_value: '0'
text_sensor:
- platform: homeassistant
id: s_timer_main_state
entity_id: timer.s_timer
on_value:
then:
- component.update: my_display
- platform: homeassistant
id: s_timer_state
entity_id: timer.s_timer
attribute: remaining
on_value:
then:
- component.update: my_display
- platform: homeassistant
id: s_timer_duration
entity_id: timer.s_timer
attribute: duration
on_value:
then:
- component.update: my_display
sensor:
- platform: homeassistant
id: s_timer_finishes_epoch
entity_id: timer.s_timer
attribute: finishes_at
device_class: timestamp
on_value:
then:
- lambda: |-
id(target_timestamp) = x;
- component.update: my_display
binary_sensor:
- platform: template
name: "PinPad Security Access"
id: s_pin_success
device_class: lock
font:
- file: gfonts://Roboto
id: timer_font
size: 48
- file: gfonts://Roboto
id: pad_font
size: 64 # Increased from 28 to make the PIN stars much bigger
- file: gfonts://Roboto
id: status_font
size: 22
output:
- platform: ledc
id: backlight_pwm
pin: GPIO21
light:
- platform: monochromatic
name: Display Backlight
id: tft_backlight
output: backlight_pwm
restore_mode: ALWAYS_ON
script:
# 1. Verifies the security code entered by the user. Change the password here if needed:
- id: verify_pin
then:
- lambda: |-
if (id(entered_code) == "1234") {
id(pad_status) = "Success!";
id(s_pin_success).publish_state(true); // <--- RESTORED: Sends the ON signal to Home Assistant
} else {
id(pad_status) = "Invalid PIN!";
}
- component.update: my_display
- delay: 2s
- lambda: |-
id(s_pin_success).publish_state(false); // <--- RESTORED: Automatically resets the HA switch back to OFF
id(entered_code) = "";
id(current_page) = "TIMER";
- component.update: my_display
# 2. Inactivity watchdog timer for the PIN Pad
- id: pinpad_timeout_watchdog
mode: restart
then:
- delay: 30s
- lambda: |-
if (id(current_page) == "PINPAD") {
id(entered_code) = "";
id(pad_status) = "Enter PIN";
id(current_page) = "TIMER";
id(my_display).update();
}
display:
- platform: mipi_spi
id: my_display
spi_id: tft_spi
model: ILI9342
cs_pin: GPIO15
dc_pin: GPIO2
dimensions:
width: 320
height: 240
rotation: 180
invert_colors: true
update_interval: 1s
data_rate: 8000000
lambda: |-
// ================= PAGE 1: TIMER INTERFACE =================
if (id(current_page) == "TIMER") {
Color bg_color = Color(20, 20, 20);
Color text_active = Color(0, 255, 100);
Color text_paused = Color(255, 140, 0);
Color text_idle = Color(120, 120, 120);
Color bar_fill_color = Color(0, 150, 255);
Color bar_bg_color = Color(60, 60, 60);
it.fill(bg_color);
std::string state = id(s_timer_main_state).state;
std::string remaining = id(s_timer_state).state;
std::string duration_str = id(s_timer_duration).state;
long total_seconds = 0;
long remaining_seconds = 0;
int dur_h = 0, dur_m = 0, dur_s = 0;
if (sscanf(duration_str.c_str(), "%d:%d:%d", &dur_h, &dur_m, &dur_s) >= 2) {
total_seconds = (dur_h * 3600) + (dur_m * 60) + dur_s;
}
if (state == "active") {
double target_epoch = id(target_timestamp);
double now_epoch = (double)::time(nullptr);
if (target_epoch > 0) {
remaining_seconds = (long)(target_epoch - now_epoch);
if (remaining_seconds < 0) remaining_seconds = 0;
int total_m = remaining_seconds / 60;
int s = remaining_seconds % 60;
it.printf(160, 90, id(timer_font), text_active, TextAlign::CENTER, "%02d:%02d", total_m, s);
} else {
it.print(160, 90, id(timer_font), text_active, TextAlign::CENTER, remaining.c_str());
}
} else if (state == "paused") {
int rem_h = 0, rem_m = 0, rem_s = 0;
if (sscanf(remaining.c_str(), "%d:%d:%d", &rem_h, &rem_m, &rem_s) >= 2) {
remaining_seconds = (rem_h * 3600) + (rem_m * 60) + rem_s;
}
int total_paused_m = (rem_h * 60) + rem_m;
it.printf(160, 90, id(timer_font), text_paused, TextAlign::CENTER, "%02d:%02d", total_paused_m, rem_s);
} else {
it.print(160, 110, id(timer_font), text_idle, TextAlign::CENTER, "Idle");
}
if ((state == "active" || state == "paused") && total_seconds > 0 && remaining_seconds <= total_seconds) {
int bar_x = 0;
int bar_y = 204;
int bar_width = 320;
int bar_height = 36;
float progress = (float)remaining_seconds / (float)total_seconds;
if (progress > 1.0f) progress = 1.0f;
if (progress < 0.0f) progress = 0.0f;
int fill_width = (int)(bar_width * progress);
it.rectangle(bar_x, bar_y, bar_width, bar_height, bar_bg_color);
if (fill_width > 0) {
it.filled_rectangle(bar_x, bar_y, fill_width, bar_height, bar_fill_color);
}
}
}
// ================= PAGE 2: PIN PAD INTERFACE =================
else if (id(current_page) == "PINPAD") {
Color bg_color = Color(15, 15, 15);
Color text_color = Color(255, 255, 255);
Color btn_default = Color(40, 40, 40);
Color red = Color(255, 0, 50);
it.fill(bg_color);
std::string masked(id(entered_code).length(), '*');
it.print(160, 12, id(status_font), text_color, TextAlign::CENTER, id(pad_status).c_str());
// Massive red stars shifted exactly to Y=45
it.print(160, 45, id(pad_font), red, TextAlign::CENTER, masked.c_str());
// --- Row 1 (Original physical dimensions and positions preserved) ---
it.filled_rectangle(20, 50, 80, 40, btn_default);
it.print(60, 70, id(status_font), text_color, TextAlign::CENTER, "1");
it.filled_rectangle(120, 50, 80, 40, btn_default);
it.print(160, 70, id(status_font), text_color, TextAlign::CENTER, "2");
it.filled_rectangle(220, 50, 80, 40, btn_default);
it.print(260, 70, id(status_font), text_color, TextAlign::CENTER, "3");
// --- Row 2 ---
it.filled_rectangle(20, 95, 80, 40, btn_default);
it.print(60, 115, id(status_font), text_color, TextAlign::CENTER, "4");
it.filled_rectangle(120, 95, 80, 40, btn_default);
it.print(160, 115, id(status_font), text_color, TextAlign::CENTER, "5");
it.filled_rectangle(220, 95, 80, 40, btn_default);
it.print(260, 115, id(status_font), text_color, TextAlign::CENTER, "6");
// --- Row 3 ---
it.filled_rectangle(20, 140, 80, 40, btn_default);
it.print(60, 160, id(status_font), text_color, TextAlign::CENTER, "7");
it.filled_rectangle(120, 140, 80, 40, btn_default);
it.print(160, 160, id(status_font), text_color, TextAlign::CENTER, "8");
it.filled_rectangle(220, 140, 80, 40, btn_default);
it.print(260, 160, id(status_font), text_color, TextAlign::CENTER, "9");
// --- Row 4 ---
it.filled_rectangle(20, 185, 80, 40, btn_default);
it.print(60, 205, id(status_font), text_color, TextAlign::CENTER, "CLR");
it.filled_rectangle(120, 185, 80, 40, btn_default);
it.print(160, 205, id(status_font), text_color, TextAlign::CENTER, "0");
it.filled_rectangle(220, 185, 80, 40, btn_default);
it.print(260, 205, id(status_font), text_color, TextAlign::CENTER, "ENT");
}
touchscreen:
- platform: xpt2046
id: cyd_touch
spi_id: touch_spi
cs_pin: GPIO33
# interrupt_pin: GPIO36
update_interval: 15ms
threshold: 80 # Keeps maximum sensitivity active
touch_timeout: 0ms
data_rate: 2000000
calibration:
x_min: 200
x_max: 3900
y_min: 200
y_max: 3900
transform:
mirror_x: false
mirror_y: false
swap_xy: true
on_touch:
- script.execute: pinpad_timeout_watchdog
- lambda: |-
if (id(current_page) == "TIMER") {
id(current_page) = "PINPAD";
id(entered_code) = "";
id(pad_status) = "Enter PIN";
id(my_display).update();
return;
}
static uint32_t last_click = 0;
uint32_t now = millis();
if (now - last_click < 150) {
return;
}
int x = touch.x;
int y = touch.y;
int pressed = 0;
// Row 1 (1, 2, 3)
if (y >= 50 && y <= 90) {
if (x >= 20 && x <= 100) { id(entered_code) += "1"; pressed = 1; }
if (x >= 120 && x <= 200) { id(entered_code) += "2"; pressed = 2; }
if (x >= 220 && x <= 300) { id(entered_code) += "3"; pressed = 3; }
}
// Row 2 (4, 5, 6)
else if (y >= 95 && y <= 135) {
if (x >= 20 && x <= 100) { id(entered_code) += "4"; pressed = 4; }
if (x >= 120 && x <= 200) { id(entered_code) += "5"; pressed = 5; }
if (x >= 220 && x <= 300) { id(entered_code) += "6"; pressed = 6; }
}
// Row 3 (7, 8, 9)
else if (y >= 140 && y <= 180) {
if (x >= 20 && x <= 100) { id(entered_code) += "7"; pressed = 7; }
if (x >= 120 && x <= 200) { id(entered_code) += "8"; pressed = 8; }
if (x >= 220 && x <= 300) { id(entered_code) += "9"; pressed = 9; }
}
// Row 4 (CLR, 0, ENT)
else if (y >= 185 && y <= 225) {
if (x >= 20 && x <= 100) { id(entered_code) = ""; pressed = 10; id(pad_status) = "Enter PIN"; }
if (x >= 120 && x <= 200) { id(entered_code) += "0"; pressed = 11; }
if (x >= 220 && x <= 300) {
pressed = 12;
id(pad_status) = "Verifying...";
id(verify_pin).execute();
}
}
if (pressed > 0) {
last_click = now;
if (id(entered_code).length() == 4 && pressed != 10 && pressed != 12) {
id(pad_status) = "Verifying...";
id(verify_pin).execute();
} else {
id(my_display).update(); // Redraws top area status instantly
}
}
time:
- platform: homeassistant
id: homeassistant_time
To customize the timer bar position:
if ((state == "active" || state == "paused") && total_seconds > 0 && remaining_seconds <= total_seconds) {
int bar_x = 40;
int bar_y = 160;
int bar_width = 240;
int bar_height = 16;This part is the part, at the very beginning of the -script, where the password can be changed:
- id: verify_pin
then:
- lambda: |-
if (id(entered_code) == "1234")This part, at the end of the code block, is where the password length can be changed. Change the number 4 to desired length:
if (pressed > 0) {
last_click = now;
if (id(entered_code).length() == 4 && pressed != 10 && pressed != 12) {
id(pad_status) = "Verifying...";
id(verify_pin).execute();
} else {
id(my_display).update(); // Redraws top area status instantly
}
